Programmable Timer For Camera/Lights for Time Lapse

Group B Distribution Inc

GBPT -12V

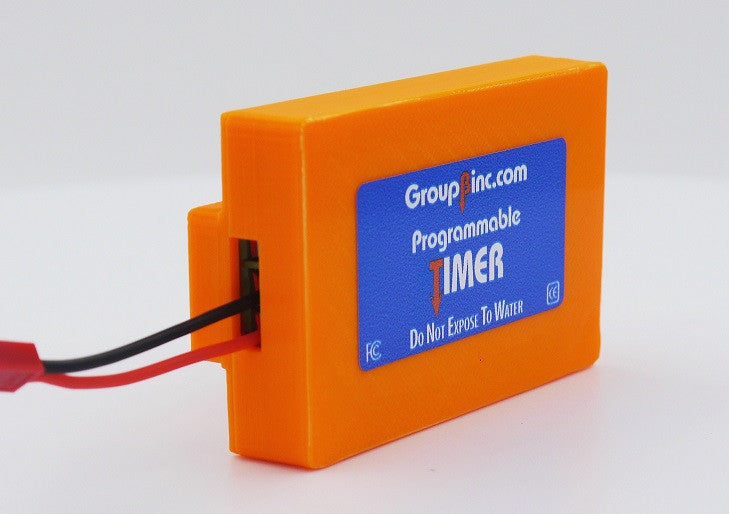

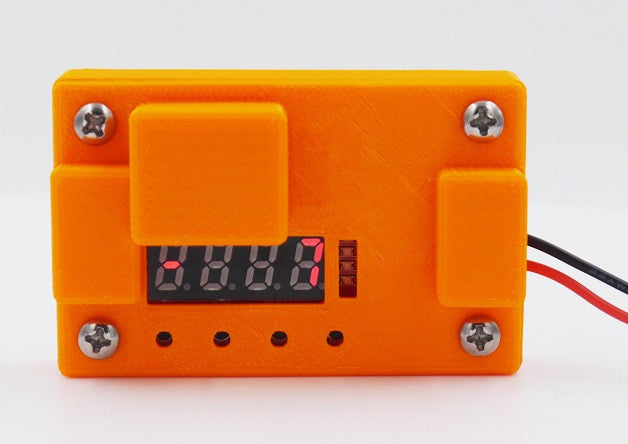

This highly programmable timer allows up to 18 functions for timed events on your camera or flashlight. This includes repeating an event (ie: record a video  and/or turn flashlight on for 10 minutes then turn off for 20 minutes) up to 9999 times if counting, otherwise unlimited. Timed events are adjustable from 0.01 seconds up to 270 hours, giving you maximum flexibility.

Two of these timers can be linked and programed to allow for even more flexibility ((ie: wait 40 hours 20 minutes and 5 seconds, then start the cycle (ie: turn camera  or light on for 12 minutes, then turn off, wait 30 minutes) and repeat that cycle 100 times.  Or turn camera on first, after 10 seconds, turn flashlight on, then turn both camera and flashlight off after 15 minutes. Repeat this cycle after 45 minutes and do it 30 times.)

This timer operates on 12V or 24V. It also fits nicely in a GPH housing.

This timer works exceptionally well with our Git2 camera and is also used in our custom programmable lights.

Mode 10 thru18 is when a secondary timer is linked or an external electrical pulse is sent (such as from a switch)

Mode 1

 -          Power on starts T1 and camera/light will be off

-          When T1 = 0 the camera/light  will turn on

-          Function stops

-          T1 can be adjustable between 0.01 seconds  and 270 hours

-          High pulse on CH1 will repeat the function



Mode 2 - Timing Disconnect

 -          Power on turns on the camera/light and starts T1

-          When T1 = 0 the camera/light  will turn off

-          Function stopscamera/light

-          T1 can be adjustable between 0.01 seconds  and 270 hours

-          High pulse on CH1 will repeat the function



Mode 3- Timing Pull-in Then Disconnect

 -          Power on starts T1 and camera/light will be off

-          When T1 = 0 the camera/light will turn on

-          T2 Starts

-          When T2 = 0 the camera/light will turn off

-          Function stops

-          T1 & T2 can be adjustable between 0.01 seconds  and 270 hours

-          High pulse on CH1 will repeat the function



Mode 4 - Timing Disconnect Then Pull-in

 -          Power on turns on the camera/light and starts T1

-          When T1 = 0 the camera/light will turn off

-          T2 Starts

-          When T2 = 0 the camera/light will turn on

-          Function stops

-          T1 & T2 can be adjustable between 0.01 seconds  and 270 hours

-          High pulse on CH1 will repeat the function



Mode 5 - Unlimited Cycle Timing Mode A

 -          Power on starts T1 and camera/light will be off

-          When T1 = 0 the camera/light will turn on

-          T2 Starts

-          When T2 = 0 the camera/light will turn off

-          Repeat the function

-          T1 & T2 can be adjustable between 0.01 seconds  and 270 hours

-          High pulse on CH1 will reset and restart the function



Mode 6 - Unlimited Cycle Timing Mode B



-          Power on turns on the camera/light and starts T1

-          When T1 = 0 the camera/light will be  off

-          T2 Starts

-          When T2 = 0 the camera/light will turn on

-          Repeat the function

-          T1 & T2 can be adjustable between 0.01 seconds  and 270 hours

-          High pulse on CH1 will reset and restart the function



Mode 7 - Limited Cycle Timing Mode A

 -          Power on starts T1 and camera/light will be off

-          When T1 = 0 the camera/light will turn on

-          T2 Starts

-          When T2 = 0 the camera/light will turn off

-          Repeat the function NX times

-          T1 & T2 can be adjustable between 0.01 seconds  and 270 hours

-          NX can be between 1 and 9999 cycles

-          High pulse on CH1 will reset and restart the function



Mode 8 - Limited Cycle Timing Mode B

 -          Power on turns on the camera/light and starts T1

-          When T1 = 0 the camera/light will be  off

-          T2 Starts

-          When T2 = 0 the camera/light will turn on

-          Repeat the function NX times

-          T1 & T2 can be adjustable between 0.01 seconds  and 270 hours

-          NX can be between 1 and 9999 cycles

-          High pulse on CH1 will reset and restart the function



Mode 9 - Self-locking Mode

 -          At power on camera/light will be off

-          High pulse on CH1 will turn on the camera/light

-          High pulse on CH1 will turn off the camera/light



Mode 10 - Trigger Mode with delay off function

 -          At power on camera/light will be off

-          High pulse on CH1 will turn on the camera/light

-          T1 will start AFTER CH1 is at a Low level

-          When T1 = 0 the camera/light will turn off

-          High pulse on CH1 will restart function

-          Note: If T1 is set to 0000, High on CH1 will turn on the camera/light .  A Low on CH1 will turn off the camera/light

-          T1 can be adjustable between 0.01 seconds  and 270 hours



Mode 11 - Trigger timing mode A

 -          At power on camera/light will be off

-          High pulse on CH1 will start T1

-          When T1 = 0 the camera/light will turn on

-          High pulse on CH1 will restart function

-          T1 can be adjustable between 0.01 seconds  and 270 hours



Mode - Trigger timing mode B



-          At power on camera/light will be off

-          High pulse on CH1 will turn on the camera/light

-          T1 will start

-          When T1 = 0 the camera/light  will turn off

-          High pulse on CH1 will reset and restart the function

-          T1 can be adjustable between 0.01 seconds  and 270 hours



Mode 13 - Trigger timing mode C

 -          Power on starts T1 and camera/light  will be off

-          High pulse on CH1 will start T1

-          When T1 = 0 the camera/light  will turn on

-          T2 Starts

-          When T2 = 0 the camera/light  will turn off

-          High pulse on CH1 will reset and restart the function

-          T1 & T2 can be adjustable between 0.01 seconds  and 270 hours



Mode 14 - Trigger timing mode D

 -          At power on camera/light  will be off

-          High pulse on CH1 will turn on the camera/light

-          T1 will start

-          When T1 = 0 the camera/light  will turn off

-          T2 Starts

-          When T2 = 0 the camera/light  will turn on

-          High pulse on CH1 will reset and restart the function

-          T1 & T2 can be adjustable between 0.01seconds  and 270 hours



Mode 15 - Unlimited Cycle Timing Mode A

 -          Power on camera/light  will be off

-          High pulse on CH1 will start T1

-          When T1 = 0 the camera/light will turn on

-          T2 Starts

-          When T2 = 0 the camera/light  will turn off

-          High pulse on CH1 will reset and restart the function

-          Repeat the function

-          T1 can be adjustable between 0.01 seconds  and 270 hours



Mode 16 - Unlimited Cycle Timing Mode B



-          At power on camera/light  will be off

-          High pulse on CH1 will turn on the camera/light

-          T1 will start

-          When T1 = 0 the camera/light will turn off

-          T2 Starts

-         When T2 = 0 the camera/light will turn on

-          High pulse on CH1 will reset and restart the function

-          Repeat the function

-          T1 can be adjustable between 0.01 seconds  and 270 hours



Mode 17 - Limited Cycle Timing Mode A

 -          At power on camera/light will be off

-          High pulse on CH1 will start T1

-          When T1 = 0 the camera/light will turn on

-          T2 Starts

-          When T2 = 0 the camera/light will turn off

-          Repeat the function NX times

-          T1 & T2 can be adjustable between 0.01 seconds  and 270 hours

-          NX can be between 1 and 9999 cycles

-          High pulse on CH1 will reset and restart the function



Mode 18 - Limited Cycle Timing Mode B

 -          At power on camera/light will be off

-          High pulse on CH1 will turn on the camera/light

-          T1 will start

-          When T1 = 0 the camera/light will turn off

-          T2 Starts

-          When T2 = 0 the camera/light will turn on

-          Repeat the function NX times

-          T1 & T2 can be adjustable between 0.01 seconds  and 270 hours

-          NX can be between 1 and 9999 cycles

-          High pulse on CH1 will reset and restart the function
